How to Safely Install Outdoor Electrical Wiring in Melbourne Homes

Outdoor electrical work is one of those jobs that looks straightforward until you start digging into the detail. Between Melbourne's unpredictable weather, strict Australian wiring rules, and the simple fact that water and electricity make a dangerous combination, getting outdoor electrical wiring installation in Melbourne right is non-negotiable. After more than a decade wiring homes across the inner north west, we have seen first-hand how decisions made at the planning stage determine whether a system runs trouble-free for twenty years or starts causing headaches within two.

Here is what every Melbourne homeowner should understand before any cable goes in the ground.

Why Outdoor Wiring Is a Different Beast

Indoor wiring lives in a controlled environment. Outdoor wiring copes with rain, UV exposure, temperature swings from frosty winter mornings to 40-degree summer days, soil moisture, tree roots, and the occasional curious possum. Standard indoor cable simply will not survive these conditions, and we still get called out to homes where a previous installer used the wrong cable type and the insulation has perished within a few seasons.

In Australia, outdoor electrical work must comply with AS/NZS 3000 (the Wiring Rules). This standard sets out cable types, depth of buried cabling, mechanical protection, and the Ingress Protection (IP) ratings required for outdoor fittings. For exposed outdoor locations, you generally need fittings rated IP44 or higher, with IP65 and above recommended for areas exposed to direct rain or hose-down cleaning.

The Legal Side: DIY Is Off the Table

This is the part that surprises many Melbourne homeowners. In Victoria, almost all electrical work, including outdoor wiring, must be carried out by a Registered Electrical Contractor (REC) licensed by Energy Safe Victoria. Once the work is complete, your electrician must issue a Certificate of Electrical Safety. Skipping this step is not just risky, it can void your home insurance and create serious liability if anything goes wrong down the track.

So while it helps to understand the principles, the actual installation needs a qualified sparky. What you can do is plan well, ask the right questions, and make informed decisions.

Key Safety Essentials for Outdoor Wiring

A few non-negotiables apply to every outdoor electrical project in Melbourne homes:

RCD protection on every outdoor circuit. Residual Current Devices detect tiny imbalances in current and cut the power within milliseconds, preventing electric shock. Every outdoor powerpoint and lighting circuit should be RCD-protected at the switchboard. In our experience, older homes across Pascoe Vale, Brunswick, and Coburg often still run on switchboards that pre-date modern safety switches, so aswitchboard upgrade Melbourne is often the first job to tackle before any new outdoor circuits are added.

Correct cable selection and depth. Underground cables must be a TPS or sheathed type rated for direct burial, or run inside approved conduit. The Wiring Rules set minimum burial depths (typically 500mm under garden beds and deeper under driveways) along with warning tape laid above the cable so future digging does not accidentally hit a live circuit.

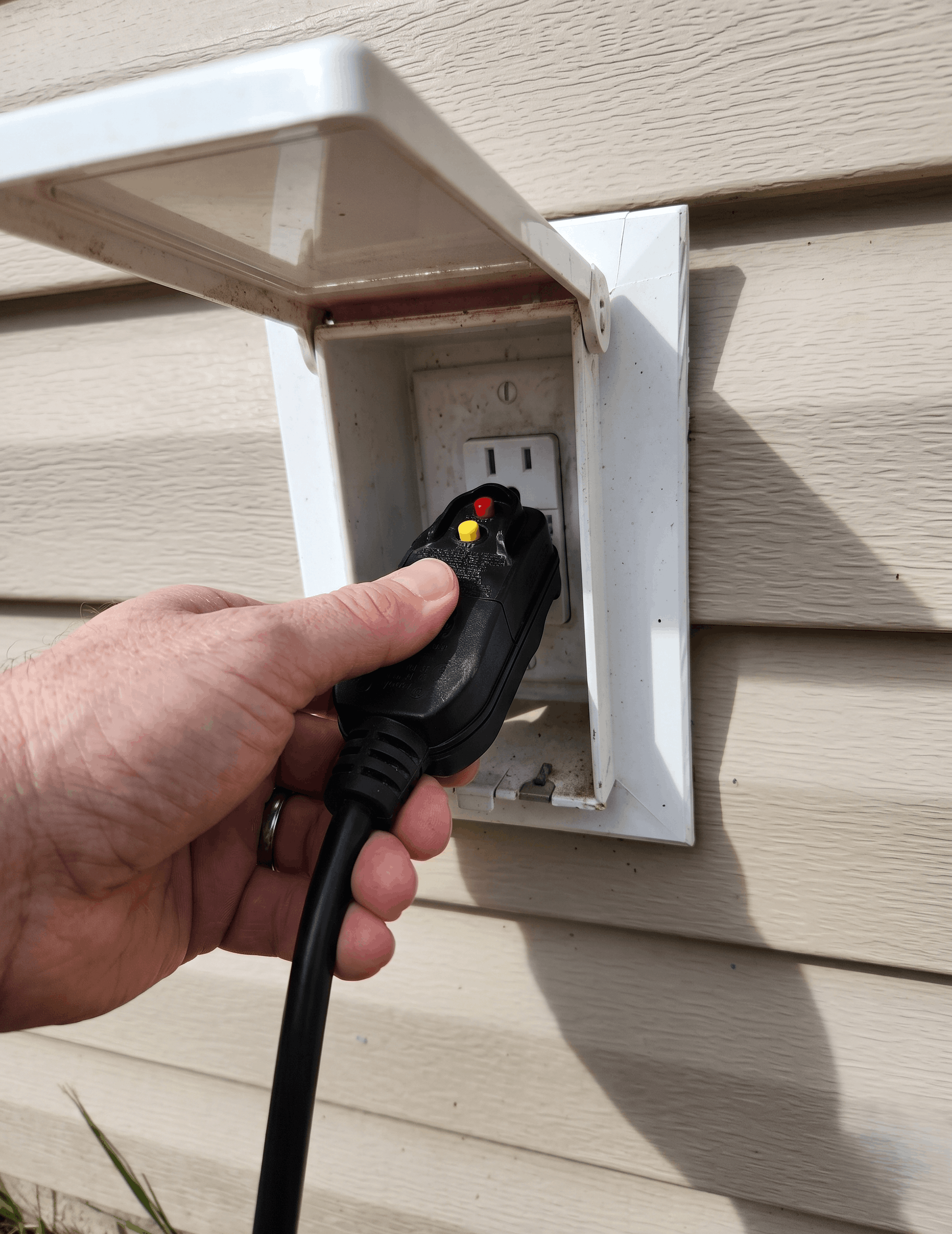

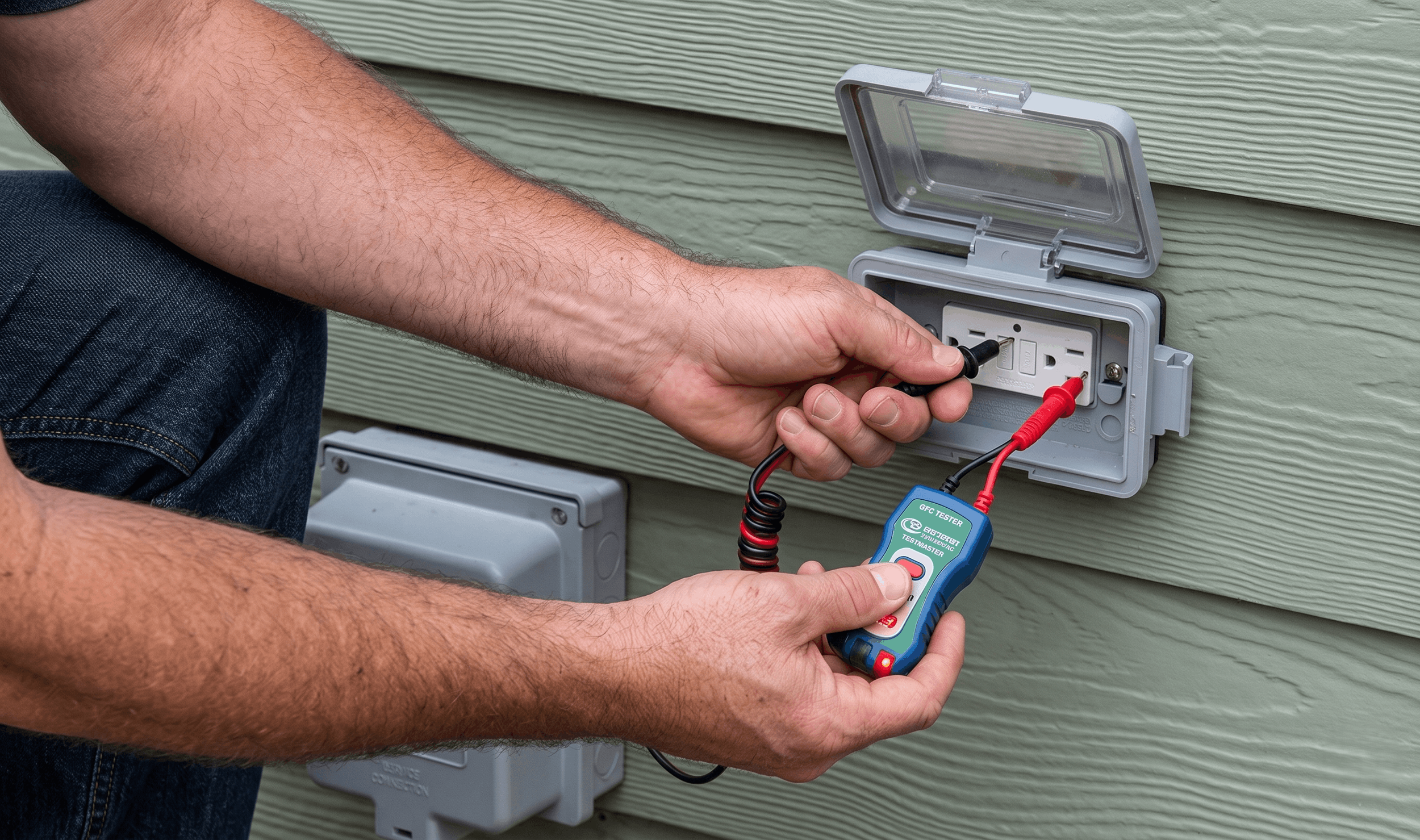

Weatherproof enclosures and fittings. Every junction box, powerpoint, and light fitting outdoors needs the right IP rating for its location. A wall-mounted powerpoint under a deep eave has different requirements to one on an exposed pergola post, and we always specify fittings based on where they will actually live.

Surge protection for outdoor circuits. Melbourne's summer storms regularly knock out unprotected electronics. Installingsurge protection for outdoor circuits at the switchboard, plus dedicated protection for sensitive outdoor equipment like LED transformers and pool pumps, extends the life of your gear significantly.

Planning Your Outdoor Project the Right Way

Before you call an electrician, walk your property and think about how you actually use your outdoor spaces. Where do you need light at night? Where would a powerpoint save you running extension leads from the kitchen? Are you planning a pool, spa, or shed in the next few years that should be wired in now while trenches are open?

For lighting specifically, the difference between an average and a great result usually comes down to design. Layered lighting with path lights, feature spots on trees, and softer ambient lighting around entertaining areas creates atmosphere and improves safety after dark. Our team handles fulloutdoor lighting installation from initial design through to commissioning, including transformer placement, cable runs, and fitting selection.

A few practical outdoor lighting safety tips worth keeping in mind: avoid daisy-chaining extension leads as a permanent solution, never paint over outdoor fittings (it ruins the IP seal), and have your outdoor circuits inspected every few years, particularly after major storms.

Why Local Experience Matters in Melbourne

Melbourne's mix of period homes, modern builds, and everything in between means there is no one-size-fits-all approach to outdoor wiring. A 1920s Pascoe Vale weatherboard with a tuck pointed brick fence presents very different challenges to a new build in Brunswick or a renovated Victorian in Preston. Knowing which suburbs still have legacy asbestos switchboards, which streets have shallow service mains, and how local council overlays affect lighting heights is the kind of thing you only pick up from years on the tools in this part of town.

Getting it right the first time is always cheaper than fixing dodgy outdoor work later, and far safer for your family.
